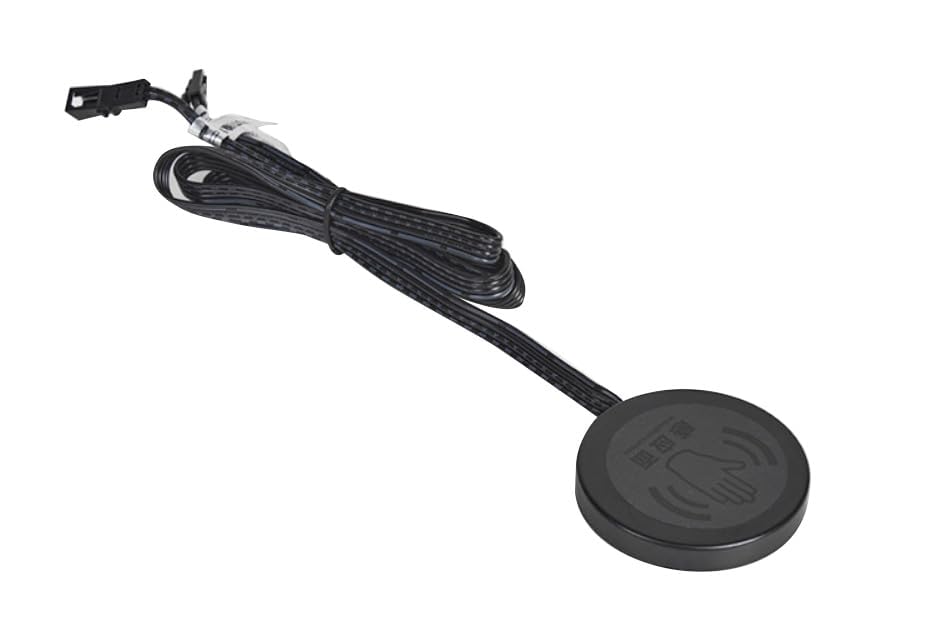

Concealed 12V Dimmer Switch - Stepless Dimming, Touch Sensor Switch Through Wood Panel for RVs, Wardrobes, Cabinets, Wine Cabinets LED Strips - Black
Product details
| Management number | 247168422 | Release Date | 2026/08/16 | List Price | US$5.60 | Model Number | 247168422 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

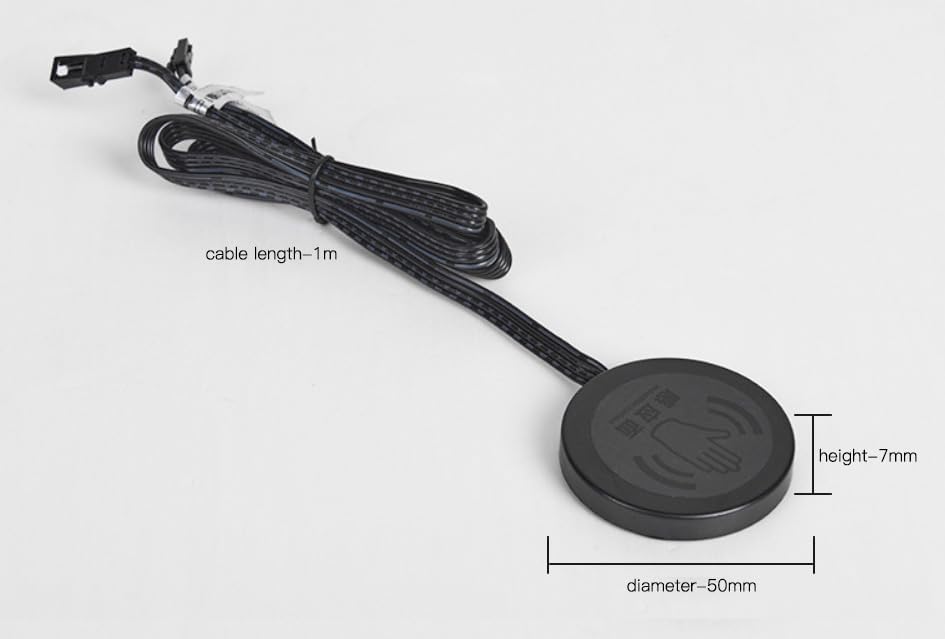

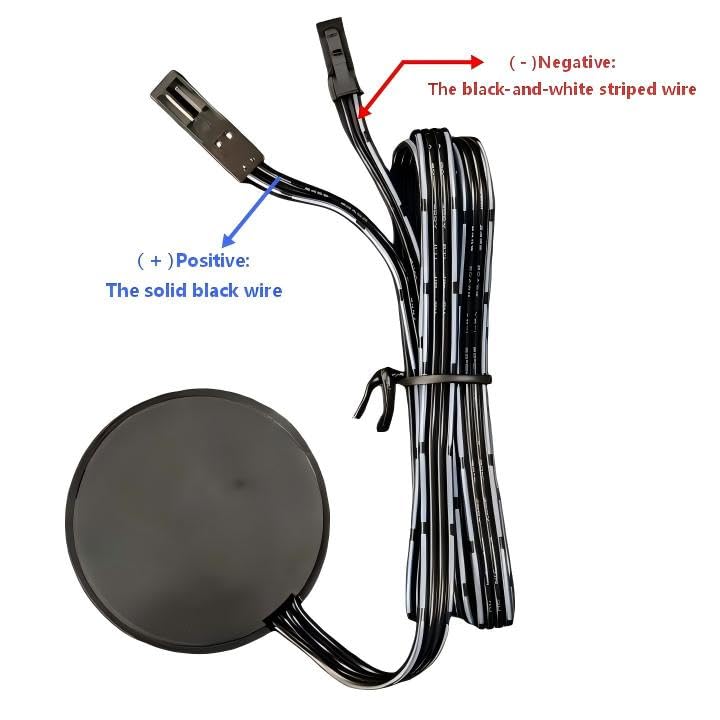

IMPORTANT WIRING NOTICE The solid black wire is positive, and the black-and-white striped wire is negative. How to Use: Switch Operation: Hand waving through the wooden panel, touching through the wooden panel above the switch, or directly touching the switch surface. Turn on/off: Hand waving or short touch for light on/off Dimming: Long press adjusts brightness Installation Methods: 1. Concealed Installation: Stick behind or beneath a wooden panel, control through hand waving or touching. (recommended) 2. Surface Installation: Mount on the surface of anywhere, control through touching or hand waving. Specifications: Input: 5-24V Voltage Output: 5V/12V/24V Power Output: 25W/60W/120W Maximum Current: 5A Compatibility: Compatible with 12V LED lights Connectors: DuPont connectors (terminals optional) Dimming: Stepless Dimming Dimming Range: 10-100% Additional Features: Memory Function Memory Function: Light resumes at the previous brightness when turned on again ( Automatically reset after a power failure). Color: Black Control Method: Touch-sensitive Mounting Type: Surface & Concealed Installation Max Wood Thickness: 0.79 inches Max Sensing Distance: 1.57 inches Dimensions: Diameter 2.05 inches, Thickness 0.28 inches Weight: 0.08 pounds Wire Length: Input wires: 39.37 inches Output wires: 39.37 inches Application: Suitable for 12V low-voltage lights, such as RV lights, LED strip lights, wardrobes, cabinets, wine cabinets, etc. Warranty: 1 year Package: 1 * 12V Dimmer switch(with adhesive) 1 * Indication Tag 1 * Manual * Note: Differentiate between input and output wires, both labeled accordingly.

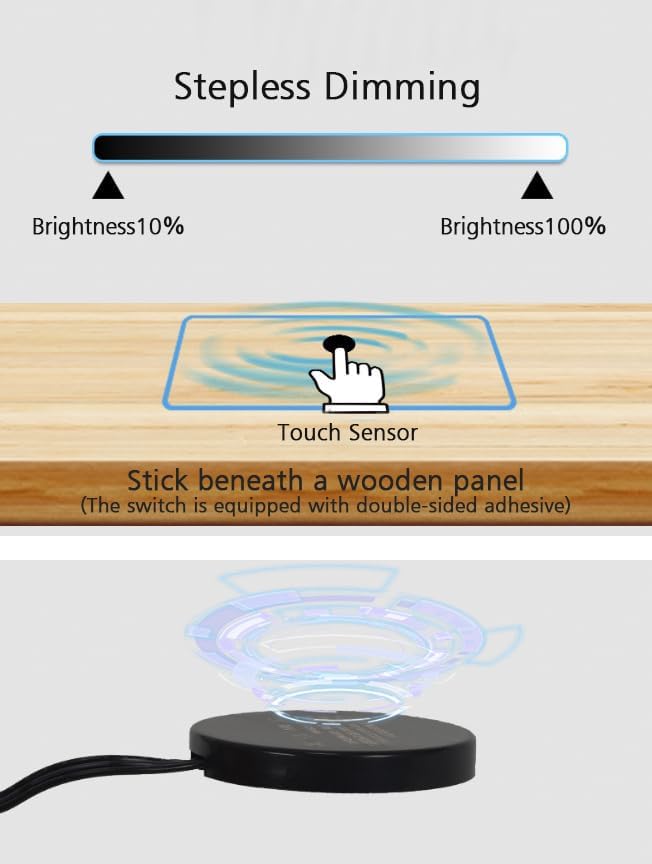

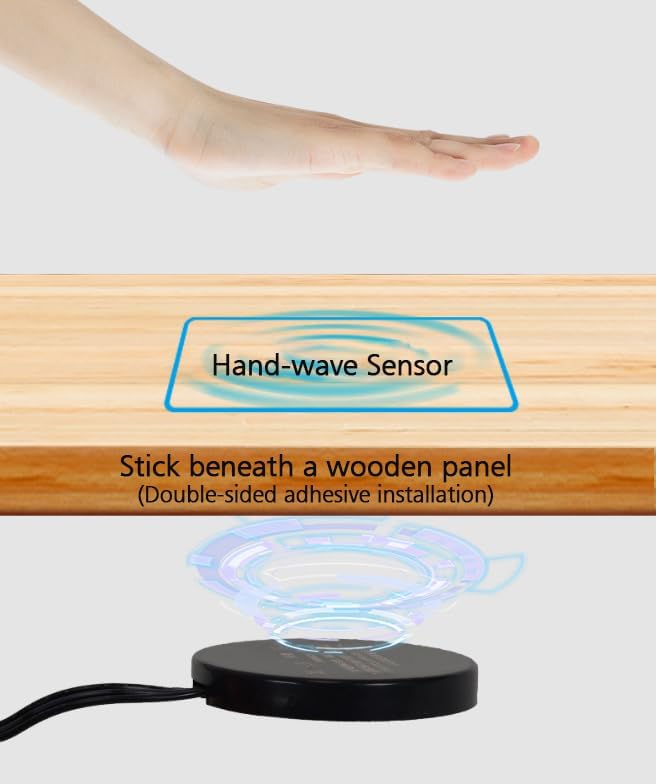

- Touch or Hand-wave Sensor: Short touch for light on/off; long press adjusts brightness
- Sensing Through Wooden Panel: Such as wood, glass, acrylic, and stone. Maximum sensing distance: 4cm.
- Built-in LED Dimmer: Input range: Stepless Dimming Function. Compatible with various constant voltage LED lights.
- Easy Installation: Stick design with double-sided adhesive sticker for quick setup, without drilling or welding.

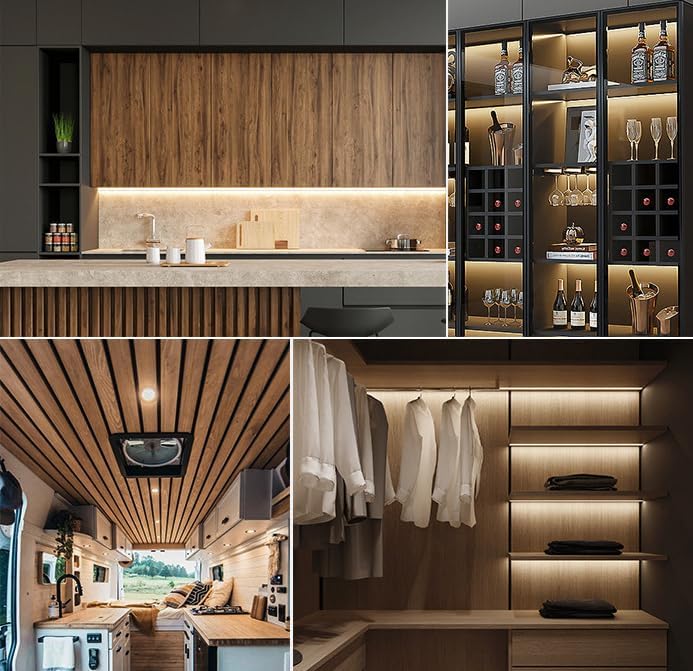

- Invisible Design & Versatile: Ideal for RV lights, LED Strip lights, cabinets, wardrobes, desks, bookshelves, showcases, vanity mirrors, caravans, etc.
| ASIN | B0D1Y2MRHD |
|---|---|
| Color | Black |
| Model | A-2 |
| Wattage | 120 watts |
| Terminal | Touch Switch |
| Brand Name | KONPWAY |
| Unit Count | 1 Count |
| Part Number | 1 |
| Switch Type | Touch Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Proximity/Remote |
| Manufacturer | KONPWAY |
| Actuator Type | Touch |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 5 A |
| Operation Mode | ON-OFF |
| Controller Type | Touch |
| Item Dimensions | 2.05 x 2.05 x 0.28 inches |
| Number of Items | 1 |
| Contact Material | Plastic |
| Operating Voltage | 12 volts_of_direct_current |
| Specification Met | Ip42 |
| Compatible Devices | 12V LED lights |
| Number of Positions | 1 |
| Connectivity Protocol | Wi-Fi |
| Upper Temperature Rating | 100 °C |
| Compatible with Vehicle Type | Recreational Vehicles (RVs), Caravans |
| International Protection Rating | IP42 |
